VBT1X1

Features

• Supports all L-band and S-band GNSS signals.
• Wide Output Voltage Range
  •  0 to 21.5 VDC.
• Low Insertion Loss
  • Less than 1.0 dB typical.
• Excellent Flatness
  • Less than 0.25 dB variation between GPS L1 and L2 typical.
• Multiple AC/DC Power Options Available
• Internal DC regulation and filtering
• Lightning Induced Transient Resistant.
  • Designed to survive DO-160G Section 22, Waveform 3 & 4.

Description

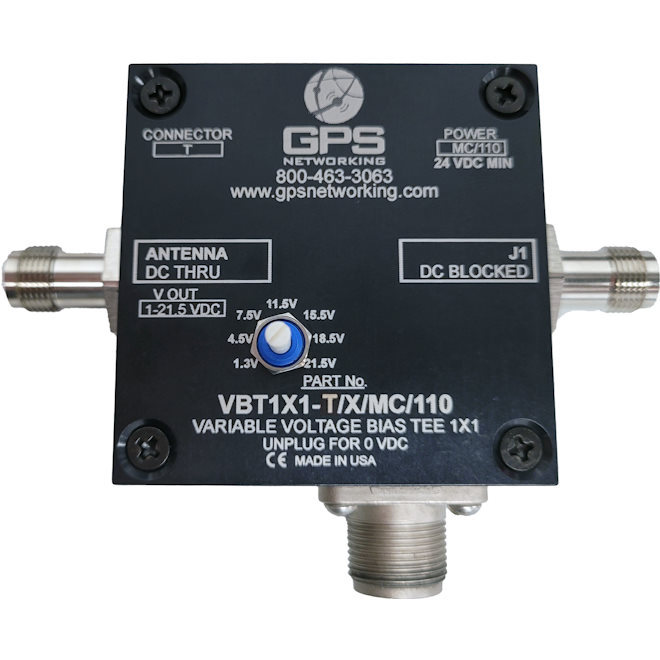

The Variable Voltage Bias Tee 1X1 (VBT1X1) is a one input, one output GPS bias-tee. This equipment is designed to inject DC voltage into a coaxial cable with minimum RF insertion loss. The VVBT1X1 is compatible with all L-band and S-band GNSS signals, including GPS, Galileo, GLONASS, BeiDou, and IRNSS. The VBT1X1 provides a regulated voltage supply and features internal transient suppression technology designed to pass DO-160G Lightning Induced Transient testing on the DC input port. In the default configuration, the J1 RF output is DC blocked while the requested DC voltage is provided to the Antenna port. The output voltage is controlled by a lid-mounted potentiometer, providing a 1.25 to 21.5 VDC voltage range when supplied with at least a 24 VDC input. The VBT1X1 is powered by an attached AC transformer (24 VDC out) or a MIL-DTL-5015 10SL two-pin DC power port.

Use Cases

• Powering antennas, inline amplifiers, splitters, or other GNSS equipment.
• Providing compatibility for equipment with different operating voltages.
  • By using a VBT1X1-N/X/110 tuned to 12VDC, a 12 VDC antenna can be used with a 5 VDC receiver.
• Protecting expensive receivers by blocking the DC path from the antenna.
• Replaces a benchtop power supply and RF bias-tee in lab environments.
