MIL-HIALDCBS1x8

Features

• Precise Amplitude Balance
• Less than 1 dB variation between ports.
• Flat Group Delay
• Less than 1ns variation between L1 and L2.
• Qualification and Test Reports Available.

Description:

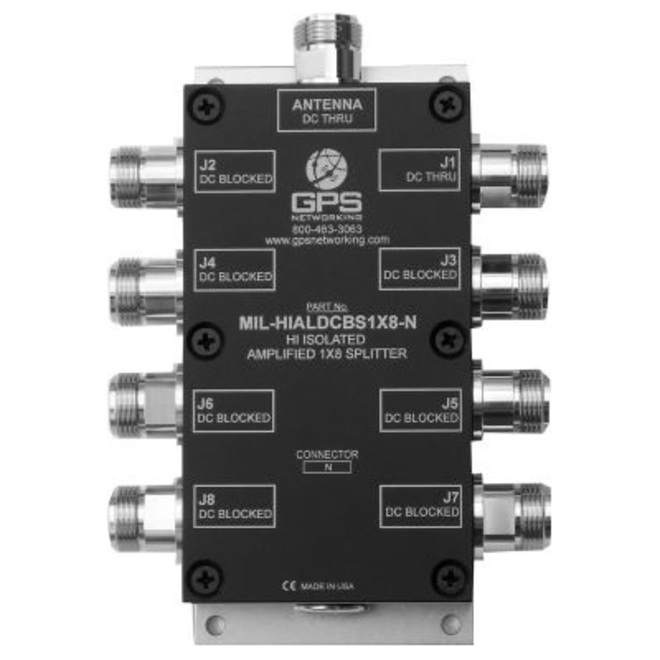

This Military Qualified High Isolated, Amplified, Loaded, DC Blocked, Splitter 1X8 (MIL-HIALDCBS1X8) is an active one input, eight output RF splitter that splits signals from 1.1 GHz to 1.7 GHz. This equipment is designed to amplify and split signals within the L-band to provide multiple devices with the signal from a single antenna. Each output port (J1-J8) is isolated from external signals to prevent interference. In the standard configuration, the J1 port will pass DC voltage from a connected device and pass this power to the antenna or other devices upline from the splitter via the antenna port. The other ports (J2-J8) are DC blocked and loaded with 200Ω resistors to simulate antenna current draw which prevents antenna alarm faults. All MIL-Spec splitters are qualified to the rigorous MIL-STD 810F environmental & MIL-STD-461F EMI standards. Custom gain, DC, and connector configurations available on request.

Use Cases

• Splitting and amplifying a roof antenna signal between 8 GPS/GLONASS/GNSS receivers.

• Splitting and amplifying WAAS antenna between WAAS receiver, ADS-B, and 6 other devices.
