L1FPDC

L1FPDC
Add To Cart
Base price: $225.00

Features

  • Low Insertion Loss
    • 1.75 dB typical.
  • Low Ripple
    • Less than 0.5 dB typical @ 1575.42 MHz ± 12 MHz.
  • Compatible with GPS, GALILEO, BeiDou, and QZSS L1 GNSS signals.

Description

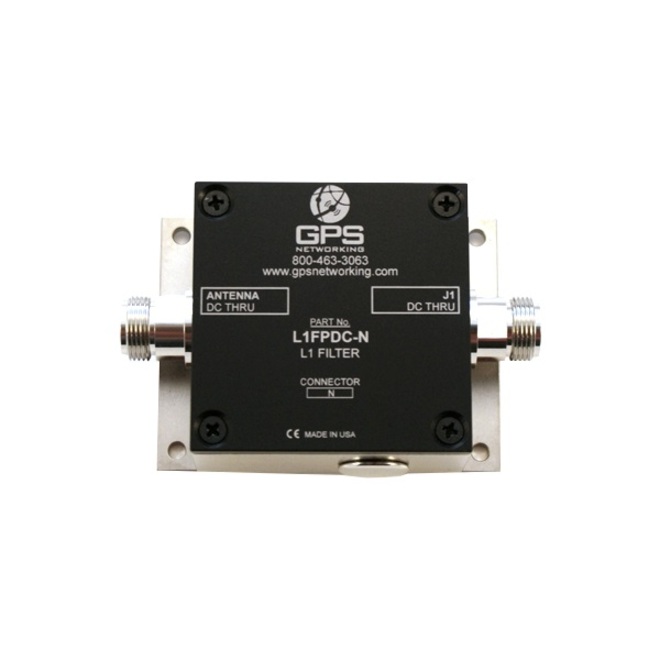

This L1 Filter Pass DC (L1FPDC) is a one input, one output passive RF filter for the L1 GPS signal. This equipment is designed to provide additional filtering and protection for GNSS signals centered around 1575.42 MHz, including GALIELO, BeiDou, and QZSS. The L1FPDC features low insertion loss, low ripple, and high rejection. In the standard configuration, the J1 port passes DC voltage from a connected device to the antenna through the ANTENNA port. Custom DC configuration and connector configuration are available upon request.

Use Cases

  • To protect an L1 receiver from out-of-band interference.
  • As part of a receiver test and measurement setup in a lab environment.
Required

Connector Type

Connector Type is required. All connectors are female.

Optional

Weatherproofing ($100)

Networking - External Power Supply ($100)

To purchase the Networking option, you will also need to select Source and Output options below.

Output (Voltage to the Antenna)

You will also need to purchase the Networking option above.

Source (Power Option)

You will also need to purchase the Networking option above.

CLICK HERE FOR DETAILS ON POWER OPTIONS

$225.00
Add To Cart
Call or email us regarding quantity discounts on 5 or more items at 1-800-463-3063 or SALES@GPSNETWORKING.COM
