L125GRRKPA-T

Features

• Full GPS, Galileo, Glonass, BeiDou bands coverage including L-Band correction services coverage
• Low Axial Ratio
• Ground plane independent
• Low phase center variation over azimuth and elevation and among different samples
• Rugged IP67 rating

Description

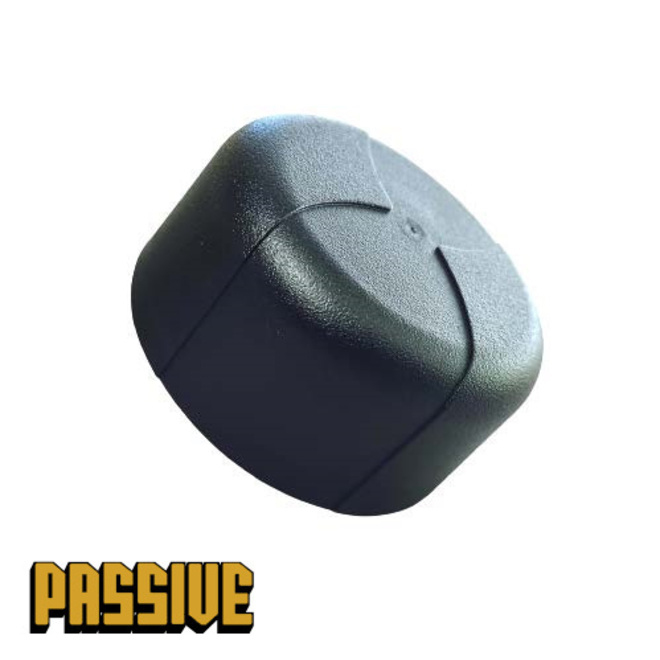

L125GRRKPA-T is a L1-L2-L5 GNSS passive antenna solution intended to cover all GPS, Galileo, Glonass, BeiDou bands including L-Band correction services coverage. Low profile RHCP, wide band antenna is ideal solution for high-precision applications, such as autonomous vehicle navigation, smart survey devices, and maritime positioning. This antenna is built on proprietary
Maxtena Helicore® technology. This technology provides exceptional pattern control, polarization purity and high efficiency in a very compact form factor. Low axial ratio ensures that the antenna captures RHCP signal well and mitigates the reflected LHCP signals. Antenna ensures high signal-to-noise ratio (SNR) and GNSS signal tracking from all elevation angles in all types of environments.

The antenna is ground plane independent and features a TNC-female RF connector.
