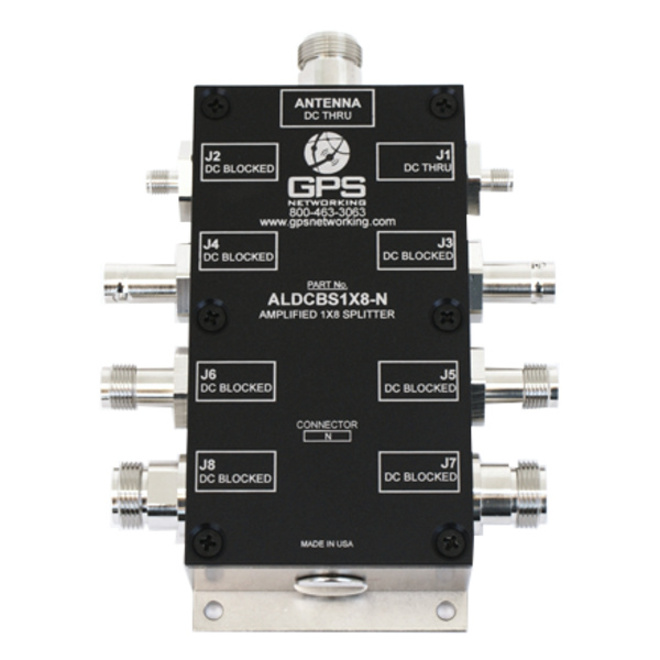

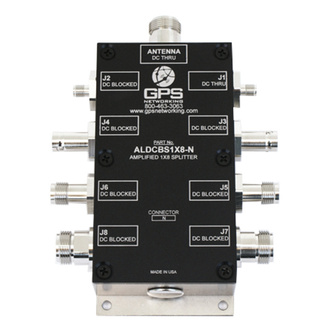

ALDCBS1X8

ALDCBS1x8

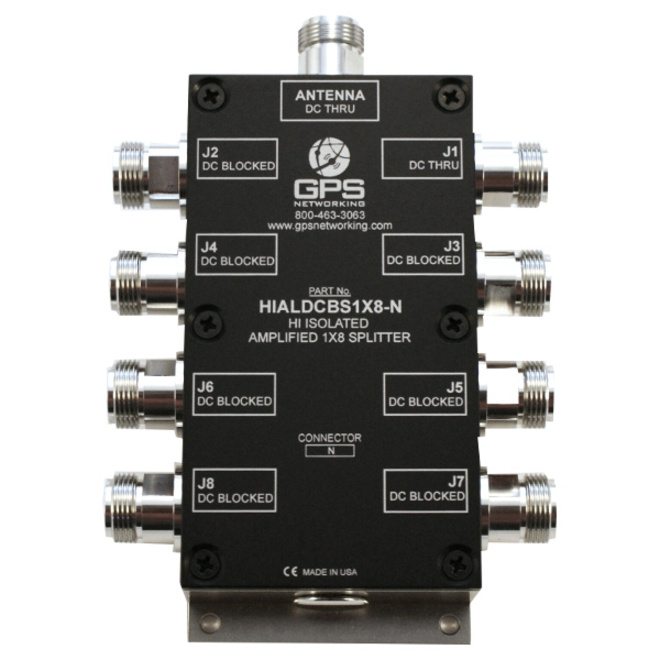

HIALDCBS1X8
Add To Cart
Base price: $950.00

Features

  • Excellent Gain Flatness
    • Less than 1 dB variation between ports.
  • Flat Group Delay
    • Less that 1ns variation between L1 and L2
  • Phase Matched Balance
    • Less than 4° of variation between ports.

Description

The ALDCBS1X8 GPS Amplified Splitter is a one input, eight output device based on the Wilkinson splitter design. The frequency response covers the entire L-band (all GNSS frequencies) with excellent gain flatness. In the standard configuration without external power, Output 1 (J1) passes DC from the connected GPS device through the splitter to the input (antenna port), allowing the GPS receiver to power both an active antenna and the splitter’s internal amplifier. The other RF outputs (J2-J8) are DC blocked and loaded with 200Ω resistors to simulate the antenna current draw to prevent false antenna alarm faults.

Use Cases

  • Splitting and amplifying a roof antenna signal between 8 GPS/GLONASS/GNSS receivers.
  • Splitting and amplifying WAAS antenna between WAAS receiver, ADS-B, and 6 other devices.

For the high isolation version of this product, please see this alternative DATASHEET.

Required

Connector Type

Connection Type is required. All connectors are female.

Optional

Weatherproofing ($100)

Hi-Isolation ($100)

Hermetically Sealed ($100)

EMI Shielding ($150)

Note: EMI Shielding includes Weatherproofing.

Networking - External Power Supply ($100)

If purchasing this add-on, please also select source and output voltage.

Output (Voltage to the Antenna)

Configuration options for the Networking add-on.

Source (Power Option)

You will also need to purchase the Networking option above.

CLICK HERE FOR DETAILS ON POWER OPTIONS

$950.00
Add To Cart
Call or email us regarding quantity discounts on 5 or more items at 1-800-463-3063 or SALES@GPSNETWORKING.COM
